Swarm Plot Examples

This example demonstrates swarm plot functionality in PubliPlots, which shows individual data points with minimal overlap.

import publiplots as pp
import pandas as pd
import numpy as np

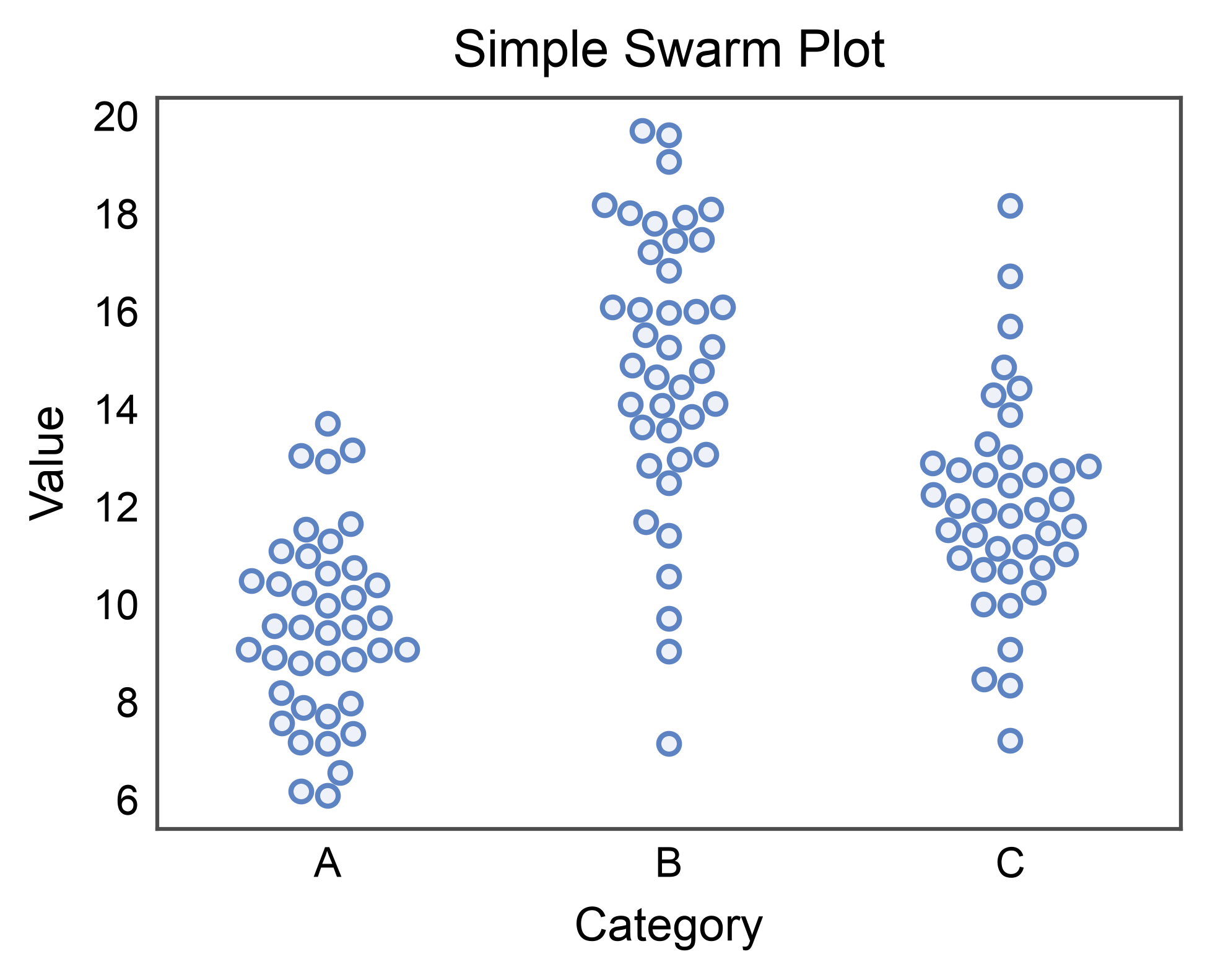

Simple Swarm Plot

Basic swarm plot showing individual data points.

# Create sample data
np.random.seed(42)
n = 120
swarm_data = pd.DataFrame({
    'category': np.repeat(['A', 'B', 'C'], n // 3),
    'value': np.concatenate([
        np.random.normal(10, 2, n // 3),
        np.random.normal(15, 3, n // 3),
        np.random.normal(12, 2.5, n // 3)
    ])
})

# Create simple swarm plot
ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    title='Simple Swarm Plot',
    xlabel='Category',
    ylabel='Value',
)
pp.show()

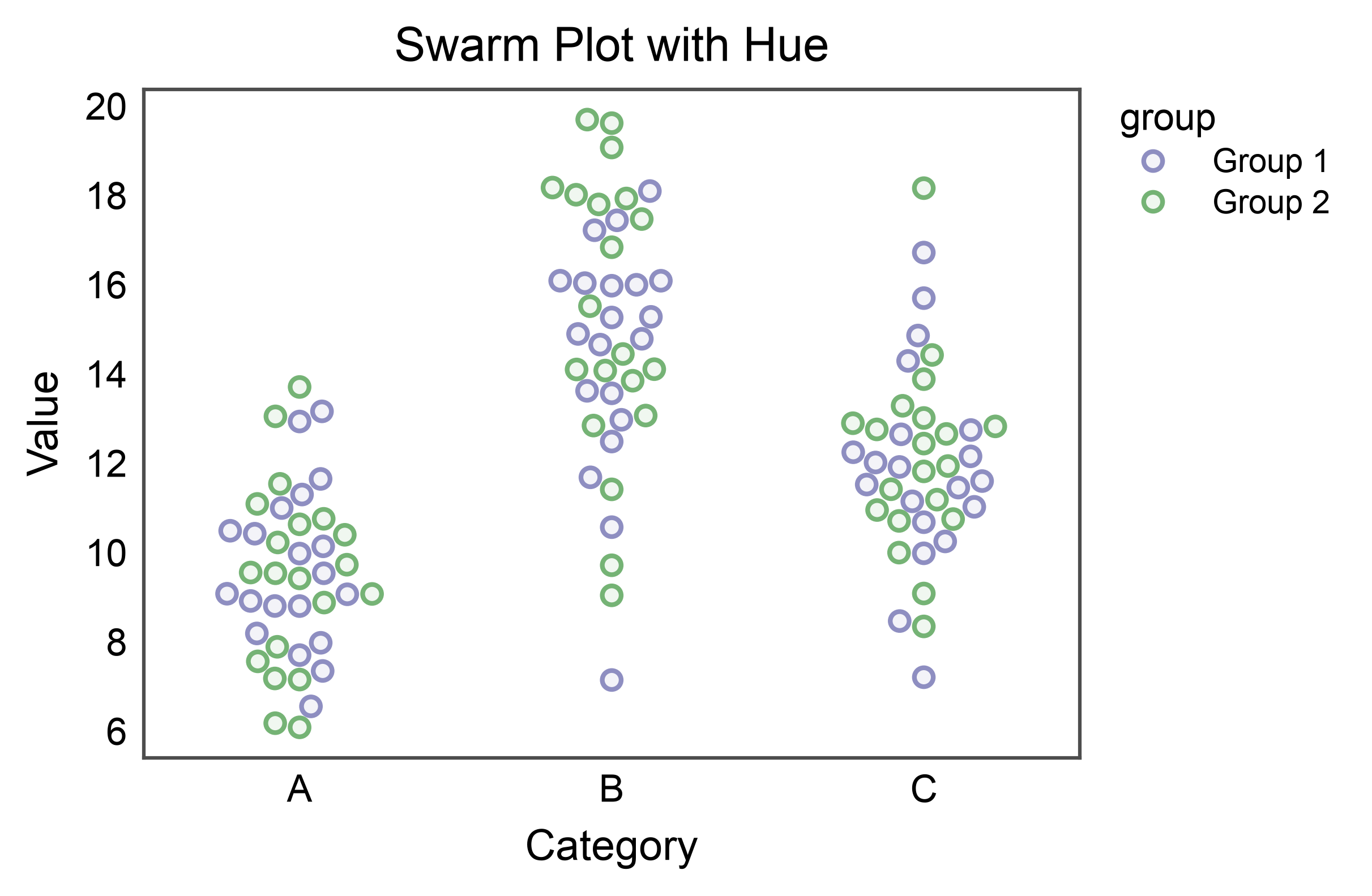

Swarm Plot with Hue Grouping

Use the hue parameter to color points by group.

# Add group variable
swarm_data['group'] = np.tile(['Group 1', 'Group 2'], n // 2)

# Create swarm plot with hue
ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    hue='group',
    title='Swarm Plot with Hue',
    xlabel='Category',
    ylabel='Value',
    palette={'Group 1': '#8E8EC1', 'Group 2': '#75B375'},
)
pp.show()

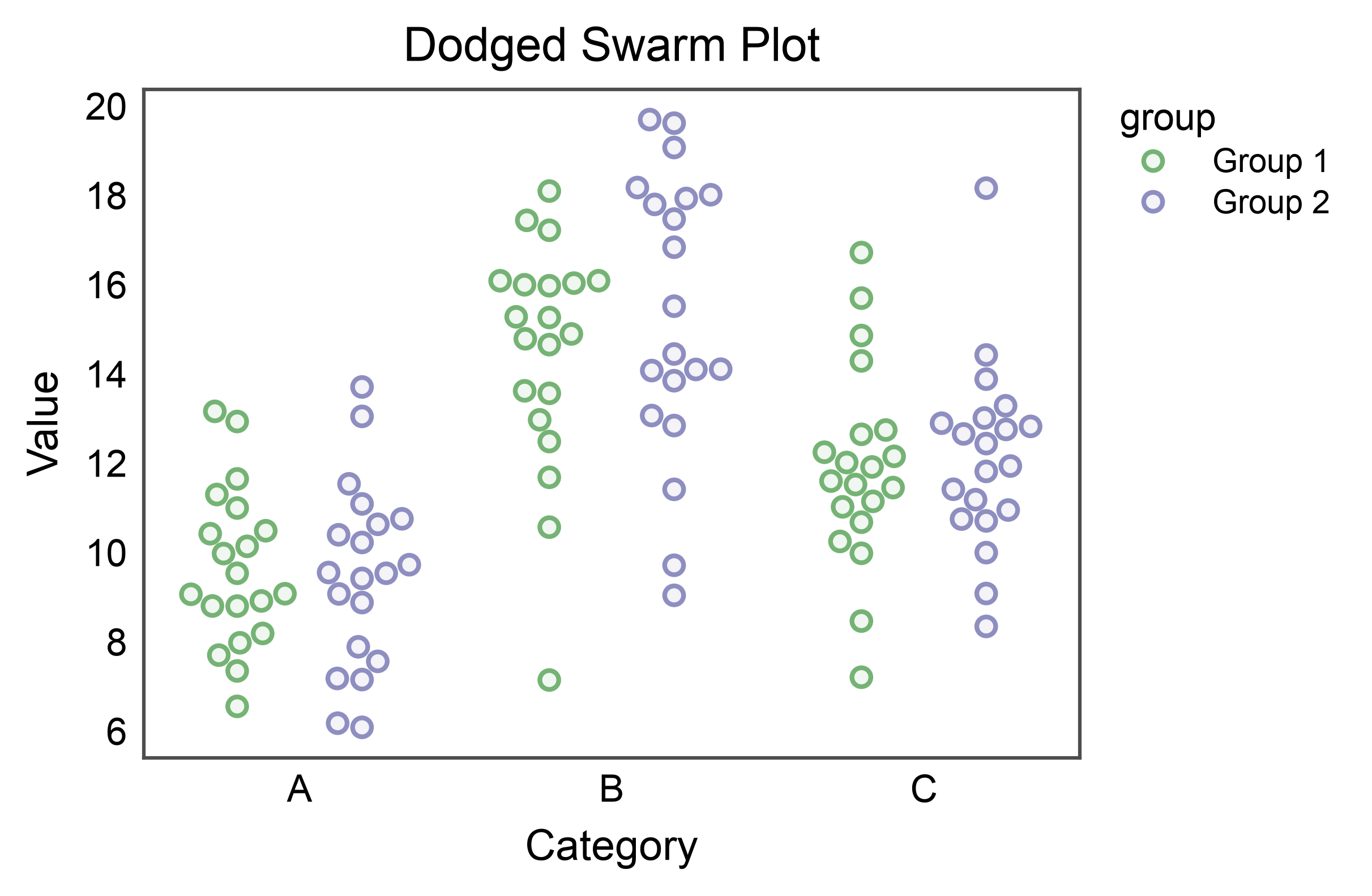

Dodged Swarm Plot

Separate points by hue along the categorical axis.

# Create dodged swarm plot
ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    hue='group',
    dodge=True,
    title='Dodged Swarm Plot',
    xlabel='Category',
    ylabel='Value',
)
pp.show()

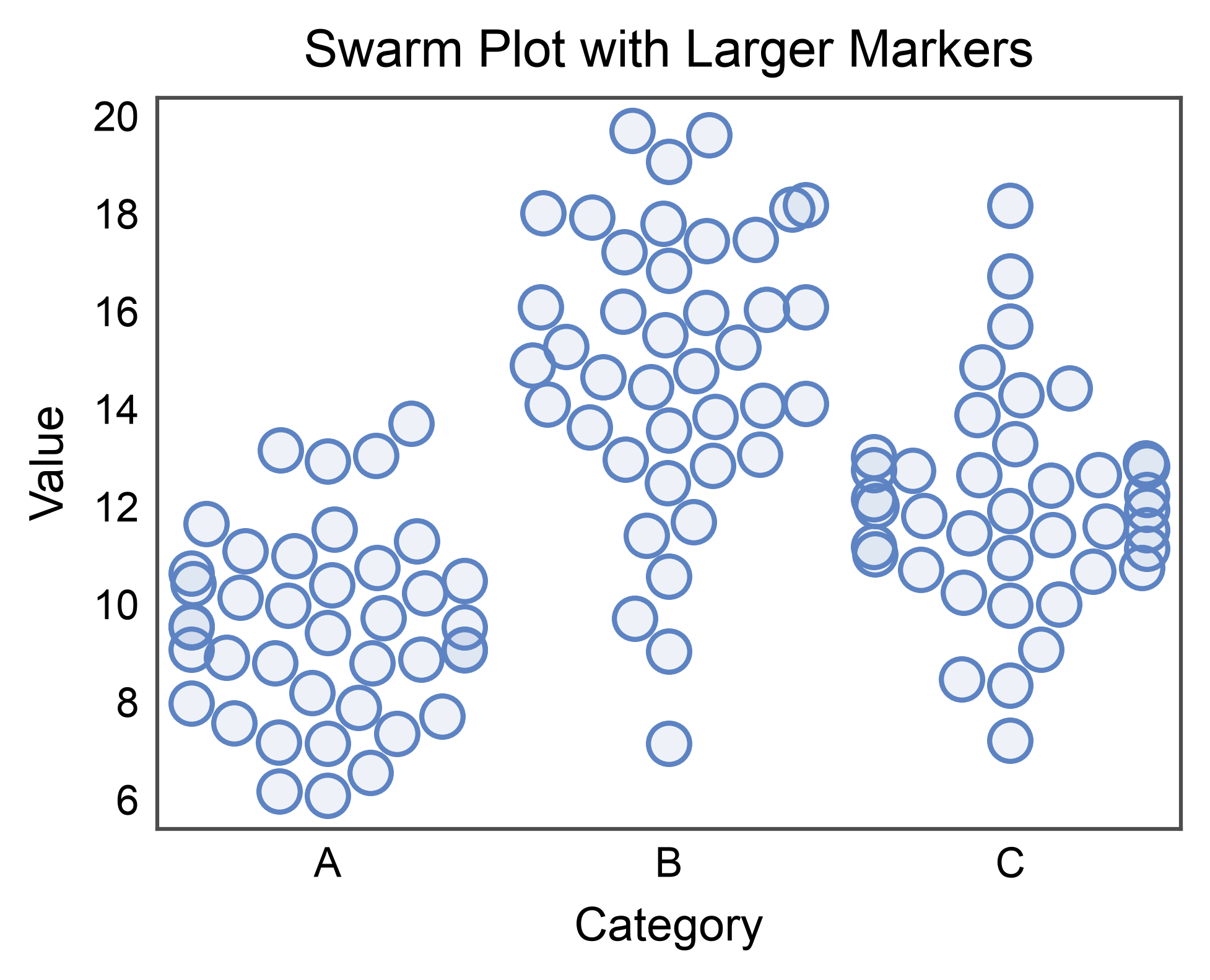

Swarm Plot with Custom Size

Adjust marker size for different data densities.

# Create swarm plot with custom size
ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    size=8,
    title='Swarm Plot with Larger Markers',
    xlabel='Category',
    ylabel='Value',
)
pp.show()

/opt/hostedtoolcache/Python/3.11.15/x64/lib/python3.11/site-packages/seaborn/categorical.py:3399: UserWarning: 10.0% of the points cannot be placed; you may want to decrease the size of the markers or use stripplot.
  warnings.warn(msg, UserWarning)

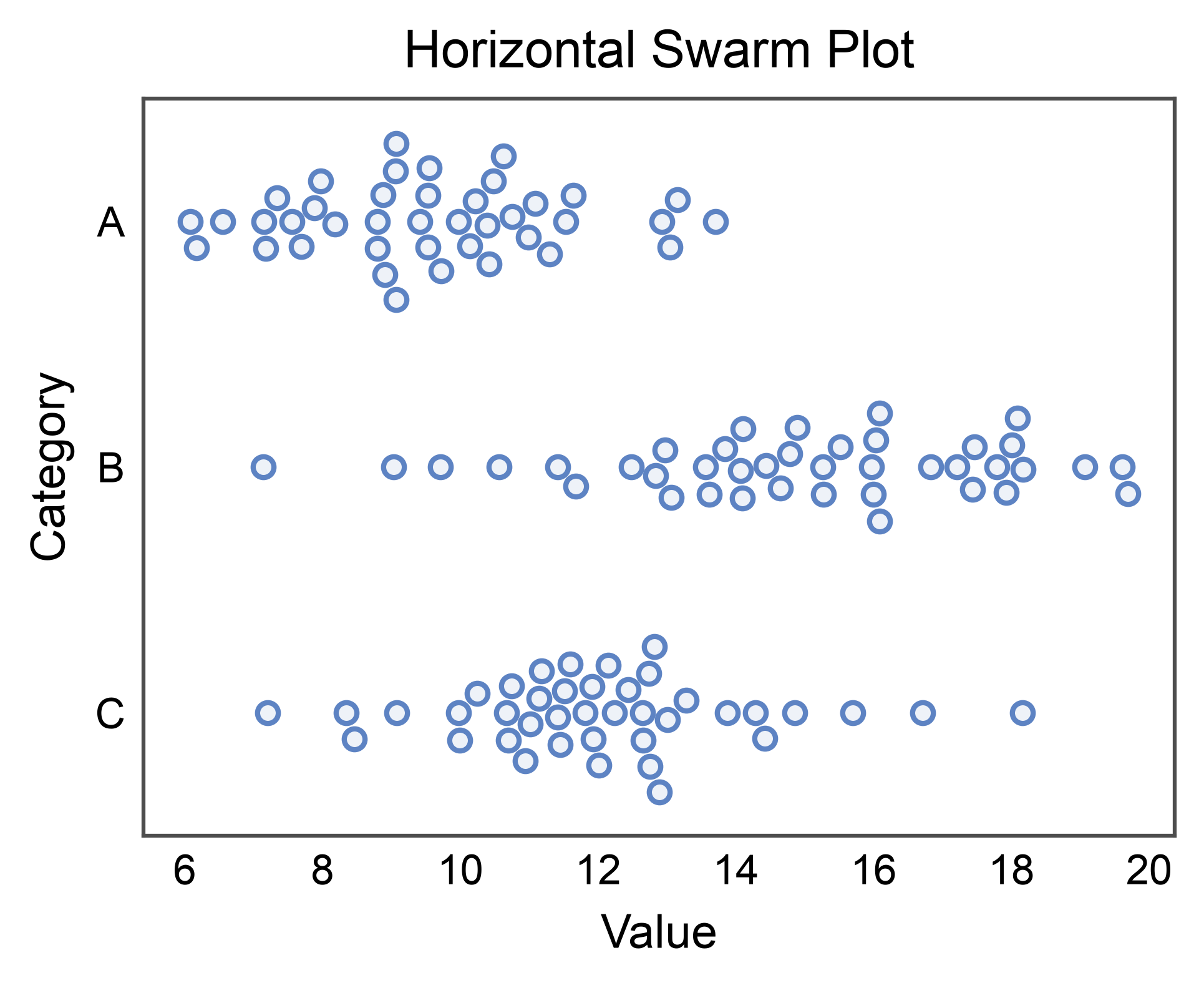

Horizontal Swarm Plot

Create horizontal swarm plot by swapping x and y.

# Create horizontal swarm plot
ax = pp.swarmplot(
    data=swarm_data,
    x='value',
    y='category',
    title='Horizontal Swarm Plot',
    xlabel='Value',
    ylabel='Category',
)
pp.show()
