Swarm Plot Examples

This example demonstrates swarm plot functionality in PubliPlots, which shows individual data points with minimal overlap.

import publiplots as pp
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt

# Set style
pp.set_notebook_style()

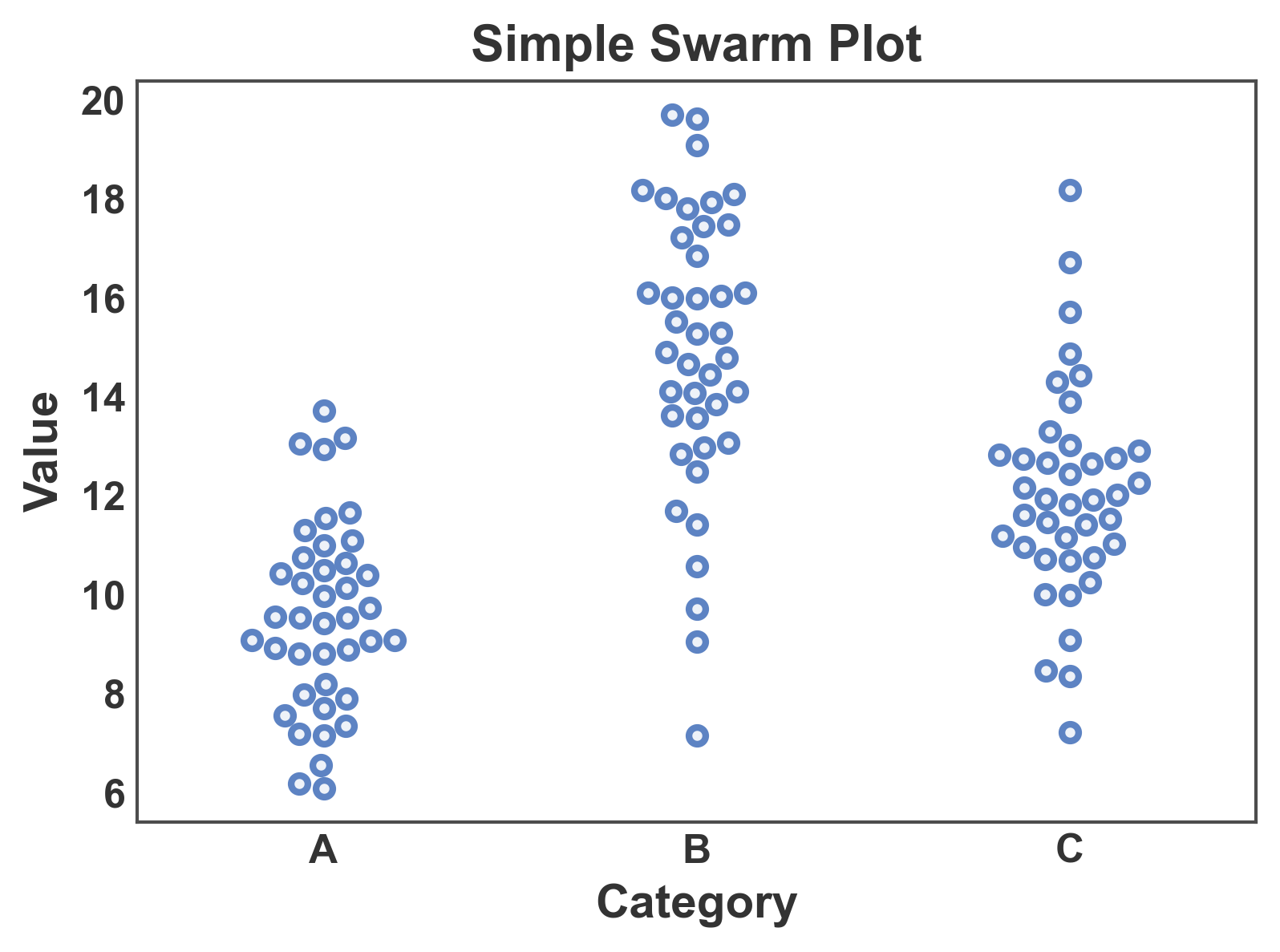

Simple Swarm Plot

Basic swarm plot showing individual data points.

# Create sample data
np.random.seed(42)
n = 120
swarm_data = pd.DataFrame({
    'category': np.repeat(['A', 'B', 'C'], n // 3),
    'value': np.concatenate([
        np.random.normal(10, 2, n // 3),
        np.random.normal(15, 3, n // 3),
        np.random.normal(12, 2.5, n // 3)
    ])
})

# Create simple swarm plot
fig, ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    title='Simple Swarm Plot',
    xlabel='Category',
    ylabel='Value',
)
plt.show()

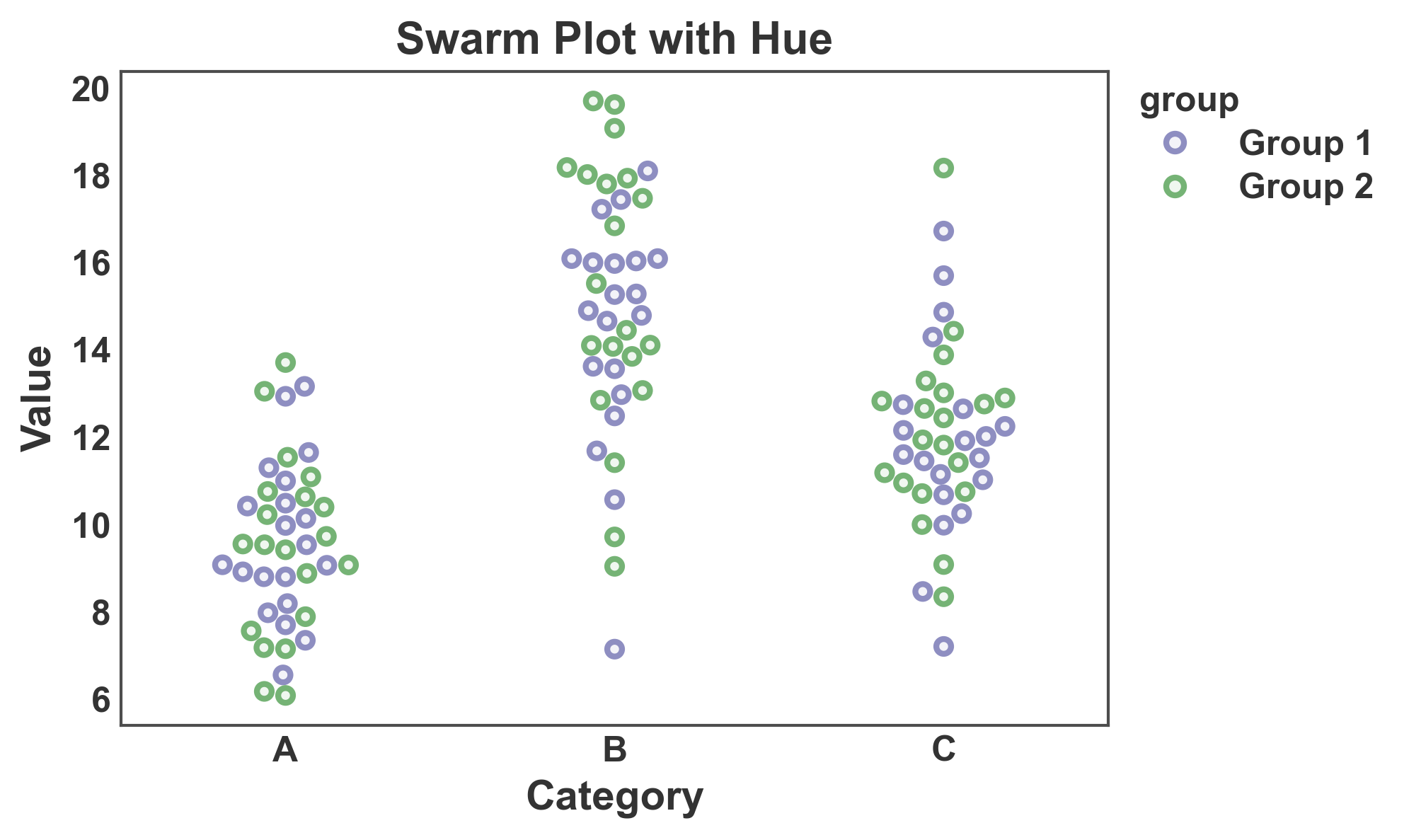

Swarm Plot with Hue Grouping

Use the hue parameter to color points by group.

# Add group variable
swarm_data['group'] = np.tile(['Group 1', 'Group 2'], n // 2)

# Create swarm plot with hue
fig, ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    hue='group',
    title='Swarm Plot with Hue',
    xlabel='Category',
    ylabel='Value',
    palette={'Group 1': '#8E8EC1', 'Group 2': '#75B375'},
)
plt.show()

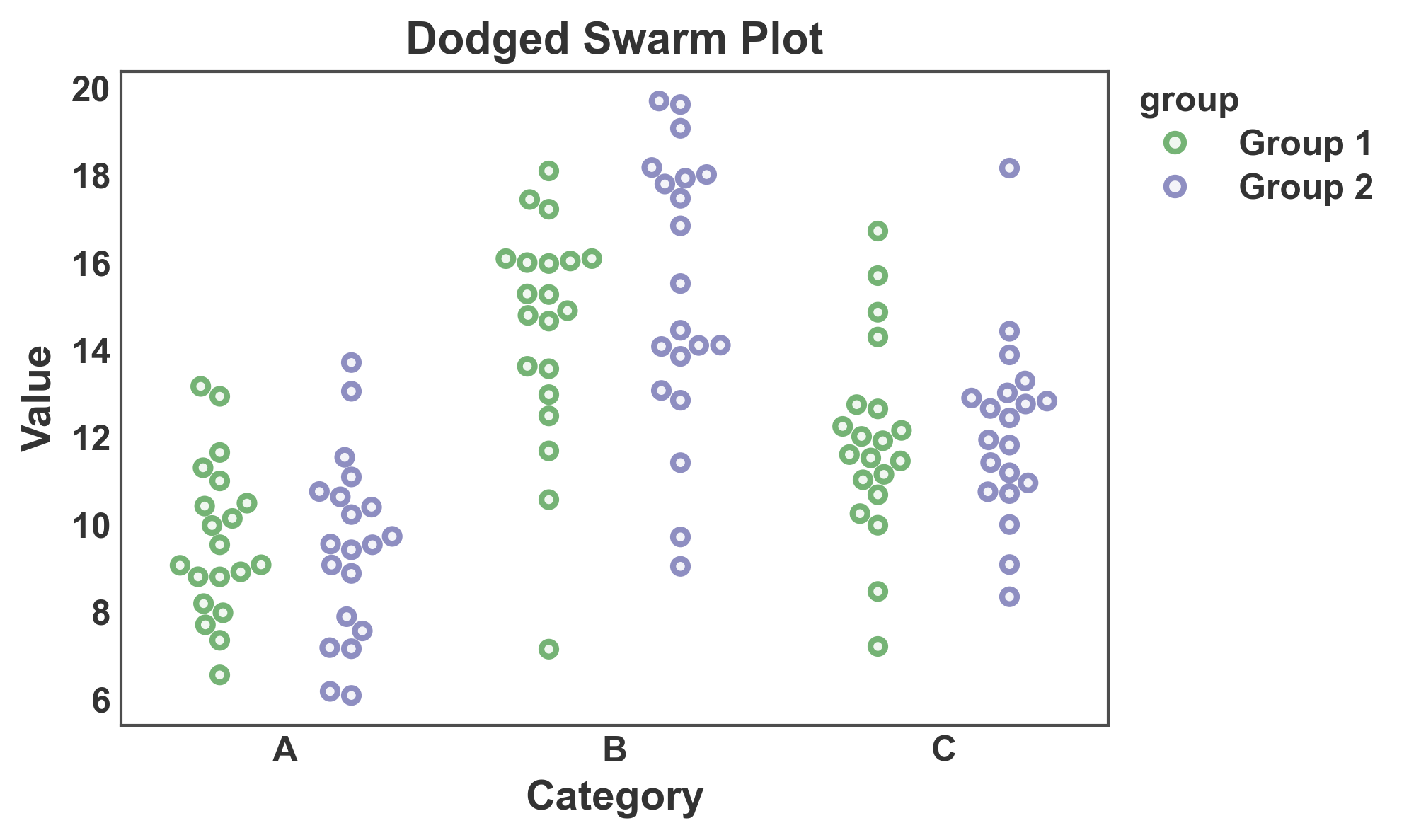

Dodged Swarm Plot

Separate points by hue along the categorical axis.

# Create dodged swarm plot
fig, ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    hue='group',
    dodge=True,
    title='Dodged Swarm Plot',
    xlabel='Category',
    ylabel='Value',
)
plt.show()

Swarm Plot with Custom Size

Adjust marker size for different data densities.

# Create swarm plot with custom size
fig, ax = pp.swarmplot(
    data=swarm_data,
    x='category',
    y='value',
    size=8,
    title='Swarm Plot with Larger Markers',
    xlabel='Category',
    ylabel='Value',
)
plt.show()

Horizontal Swarm Plot

Create horizontal swarm plot by swapping x and y.

# Create horizontal swarm plot
fig, ax = pp.swarmplot(
    data=swarm_data,
    x='value',
    y='category',
    title='Horizontal Swarm Plot',
    xlabel='Value',
    ylabel='Category',
)
plt.show()
